Mediator Design Pattern

Structural: Mediator Pattern

What is the Mediator Design Pattern?​

View Answer:
Interview Response: The Mediator design pattern is a behaviorial design pattern in JavaScript allows objects to communicate through a central mediator object, reducing dependencies between objects and improving maintainability and flexibility.

Technical Response: The Mediator Design Pattern provides a unified interface through which different parts of a system may communicate. This pattern helps to decouple the code, reduce dependencies, and increase the ease of future modification or extension of code.

Code Example:

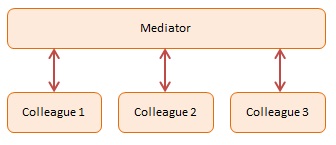

The objects participating in this pattern are:

Mediator -- example code: Chatroom

  • It specifies an interface for interacting with Colleague objects
  • Maintains references to Colleague objects
  • Manages central control over operations

Colleagues -- example code: Participants

  • objects that the Mediator is mediating
  • each instance maintains a connection (reference) to the Mediator

Let's consider an example of a Chat Room where multiple users can send and receive messages.

Here is a JavaScript implementation of the Mediator Pattern:

class User {
    constructor(name) {
        this.name = name;
        this.chatRoom = null;
    }

    send(message, to) {
        this.chatRoom.send(message, this, to);
    }

    receive(message, from) {
        console.log(`${from.name} to ${this.name}: ${message}`);
    }
}

class ChatRoom {
    constructor() {
        this.users = {};
    }

    register(user) {
        this.users[user.name] = user;
        user.chatRoom = this;
    }

    send(message, from, to) {
        if (to) {
            // Single user message
            to.receive(message, from);
        } else {
            // Broadcast message
            for (let key in this.users) {
                if (this.users[key] !== from) {
                    this.users[key].receive(message, from);
                }
            }
        }
    }
}

// Create users
let brad = new User('Brad');
let jeff = new User('Jeff');
let sara = new User('Sara');

// Create chatroom
let chatroom = new ChatRoom();

// Register users in chatroom
chatroom.register(brad);
chatroom.register(jeff);
chatroom.register(sara);

// Users send and receive messages
brad.send('Hello Jeff', jeff);
sara.send('Hello Brad, you are the best!', brad);
jeff.send('Hello Everyone!');

In the above example, User objects can send and receive messages from each other but they are doing it using the ChatRoom mediator. The ChatRoom object knows how to redirect the messages among users and it encapsulates this logic so that the User objects don't need to know about the details of each other directly. This makes User objects loosely coupled and they can communicate with each other effectively via the ChatRoom mediator.

The Mediator pattern belongs to which pattern category?​

View Answer:
Interview Response: The Mediator pattern in JavaScript belongs to the behavioral pattern category, which focuses on communication and interaction between objects in a system.

When should you utilize the JavaScript Mediator Pattern?​

View Answer:
Interview Response: The Mediator pattern in JavaScript should be utilized when a system has a high degree of object interdependence, or when implementing event-driven architectures.

Technical Response: We can use it:

  • If your system has several components that must communicate with one another.
  • To avoid tight object coupling in a system with many objects.
  • To enhance code readability.
  • To make it easier to maintain code.
  • If communication between objects gets complicated or impedes code reusability

What are the advantages of employing the Mediator pattern?​

View Answer:
Interview Response: The advantages of employing the Mediator pattern in JavaScript include reduced coupling between objects, improved maintainability, and flexibility to change communication behaviors.

Technical Response: Benefits of the Mediator Pattern

  • Singular Responsibility Principle -- You may consolidate the communications between numerous components into a single location, making them easier to understand and maintain.
  • The Open/Closed Principle You can add new mediators without changing the key components.
  • You can reduce coupling between software components.
  • We can use individual components more efficiently.

What are some downsides of the Mediator Pattern?​

View Answer:
Interview Response: It can become complex and it could also potentially become a God object.

Technical Response: Some of the drawbacks of the Mediator pattern in JavaScript include increased complexity due to the central mediator object, and potential performance overhead when handling a large number of events.

Drawbacks of the Mediator Pattern.

  • A mediator can evolve into a God Object over time.

Are there any alternatives to using the Mediator pattern?​

View Answer:
Interview Response: Yes, alternatives to the Mediator pattern in JavaScript include using the Observer pattern, event-driven architecture, or implementing direct communication between objects.

What are the main components of the Mediator Pattern?​

View Answer:
Interview Response: The main components of the Mediator pattern in JavaScript are the Mediator (which centralizes communication) and Colleagues (which are the components that interact with each other through the Mediator).

Code Example:

Here's an example with comments highlighting the main components.

// Mediator - central communication hub
class ChatRoom {
    constructor() {
        this.users = {};
    }

    // Register function acts as the means of adding Colleagues
    register(user) {
        this.users[user.name] = user;
        user.chatRoom = this;
    }

    // This is where communication between Colleagues happens
    send(message, from, to) {
        if (to) {
            // Single user message
            to.receive(message, from);
        } else {
            // Broadcast message
            for (let key in this.users) {
                if (this.users[key] !== from) {
                    this.users[key].receive(message, from);
                }
            }
        }
    }
}

// Colleague - the components that are communicating via the Mediator
class User {
    constructor(name) {
        this.name = name;
        this.chatRoom = null; // A reference to the Mediator
    }

    send(message, to) {
        // Interact with the Mediator to send messages
        this.chatRoom.send(message, this, to);
    }

    receive(message, from) {
        console.log(`${from.name} to ${this.name}: ${message}`);
    }
}

// Creating colleagues
let bob = new User('Bob');
let alice = new User('Alice');
let charlie = new User('Charlie');

// Creating a mediator
let chatroom = new ChatRoom();

// Registering colleagues with the mediator
chatroom.register(bob);
chatroom.register(alice);
chatroom.register(charlie);

// Colleagues interacting with each other via the mediator
bob.send('Hey, Alice', alice);
alice.send('Hi, Bob!', bob);
charlie.send('Hello everyone!');

In this example, ChatRoom is the Mediator and User instances (Bob, Alice, Charlie) are Colleagues. The Colleagues communicate with each other via the Mediator (ChatRoom), which handles and routes messages. This reduces the direct communication paths between the Colleagues, leading to a system that's easier to manage and extend.

What problem does the Mediator Pattern solve?​

View Answer:
Interview Response: It reduces dependencies between objects, improving maintainability, flexibility, and testing.

How does the Mediator Pattern differ from Observer Pattern?​

View Answer:
Interview Response: The Observer Pattern facilitates broadcast communication, whereas Mediator encapsulates centralized and complex communications.

When is the Mediator Pattern most effective?​

View Answer:
Interview Response: It's effective when working with a set of objects that are tightly coupled.

How does the Mediator Pattern promote single responsibility?​

View Answer:
Interview Response: Each object focuses on its own functionality while the mediator handles communication.

Why would you choose the Mediator Pattern over direct communication?​

View Answer:
Interview Response: To reduce dependencies between objects and to simplify updates and modifications.

How does the Mediator Pattern influence application performance?​

View Answer:
Interview Response: It may slightly reduce performance due to indirect communication, but it improves maintainability and flexibility.
